System MF

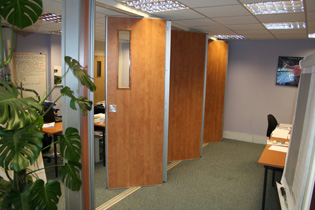

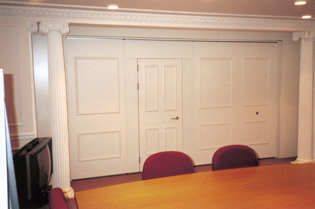

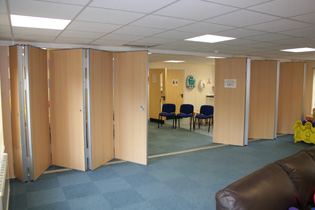

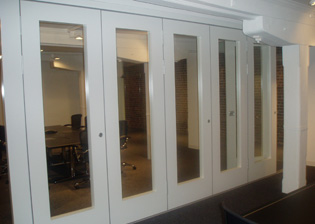

Hinged sliding folding modules make System MF ideal for those areas having multiple functions or where rapid layout changes are required. The system lends itself particularly to offices, including those with hot desking and hotelling areas, meeting rooms, clubs and restaurants, leisure centres and educational establishments.


  • Floor supported on a bottom roller track system with guide channel at top.
  • Alternatively, top hung with/without floor track
  • Floor track features concealed fixings
  • Face operated espagnolette bolts lock wall securely in position
  • Continuous contact sweep seals minimise sound transfer
  • Single wing or bi-parting configurations
  • Leading element is full height pass door
  • Optional vision panels
  • Parking centrally or to side of line of track
  • Panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing surface or paint


  • Sound resistance: Up to 44Rw(dB) depending on construction
  • Module thickness: 80mm
  • Module width: 250mm to 900mm
  • Wall heights: Up to 4000mm as standard
